What are the differences between the three types of PCBs?
Tri-Mode | Hotswap

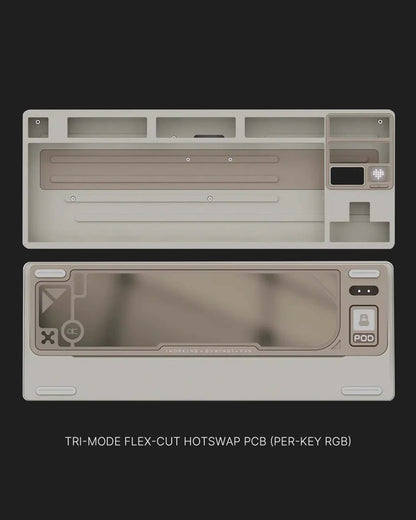

1.2mm Flex-Cut (Per-Key RGB)
The thickness is 1.2mm.
With RGB lights
1.2mm Flex-Cut (No RGB)
The thickness is 1.2mm.
No RGB lights
1.6mm Non Flex-Cut (No RGB)
The thickness is 1.6mm, the sound is tighter than 1.2mm.
No RGB lights
Cannot insert 6.25U spacebar.
Choose a plate that matches your style
Sort by plate with softest > hardest However, the sound you get also depends on external factors, such as the choice of switches, keycaps, etc.
PC
PC PLATE
Material : Polycarbonate (plastic) Feeling : Suitable for those who do not want a soft and not hard press feel. Sound : The softest and has a fairly deep and soft tone.
Suitable for those who need to build a THOCK tone.
POM
POM PLATE
Material : Polyoxymethylene (plastic) Feeling : More bouncy and firmer than PC, but still flexible. Sound : The sound is rather dull, leaning towards a POPPY tone.Not as tight as AL, CF
Suitable for those who need to build a THOCK tone.
FR4
FR4 PLATE (Flex-Cut)
Material : Fiberglass (fiberglass) Feeling : The softest and bounciest of all the options, as it features a Flex cut to reduce stiffness and increase flex for typing. Sound : The sound is quite clear and tight, but not as tight as AL, CF.
Suitable for those who need to build a THOCK or CLACK tone, depending on the switch selection.
ALUMINIUM
ALUMINIUM PLATE
Material : Aluminium (Aluminium) Feeling : Firm press feeling, bouncy press feeling, with a slight bounce back. Sound : The sound is sharp, clear, and loud.
Suitable for those who need to build a CLACK tone.
CF
CARBON FIBER PLATE
Material : Graphite fiber Feeling : Hard and firm feeling Sound : The sound is sharp and dry, quite SUB sound, not as loud as Aluminum.
Suitable for those who need to build a CLACK tone.
Need help?
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ's
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
QWERTYKEYS
A popular brand in the Custom Keyboard industry
QK80 MK2 The ultimate premium keyboard at the best price
Complete in design, sound and function
Game harder. Work smarter. Complete with all functions for both gaming and work.
Design
Backweight
Aesthetic Design
Mirror - Polished & PVD SS Weight comes with 2 layers of protective film. It has a unique, classic design mixed with modernity, resulting in endless perfection. It also has two-tone colors that alternate back and forth, making it even more colorful.
Design
Side Profile Usability
The design is luxurious and premium, and the Curve Side is more curved and layered compared to the previous QK80, making it convenient for Rapid Assembly.
Built-in
Magnetic USB
Don't be afraid of losing it with the cool built-in USB storage compartment at the back.
extra part
BADGE
The USB storage compartment on the back of the keyboard has 11 different patterns to choose from and can be swapped out.
[Working + Gaming] x Fun
Your creativity , Unlocked Customize to your style
Upgrade LCD Screen Add more screen features from the first model. Create colors and customize your own theme. Also, add a mini game that was a favorite in childhood, "Flappy Bird".
Dot Matrix is fun to type every time.
The small screen on the right can be adjusted via buttons to 4 modes, including displaying letters while typing.
Make your keyboard “smarter” with VIA
Customize everything…your way
Change the button position as you wish through VIA, which is designed to be user-friendly and immediately usable without using JSON.FILE.
No matter how many devices you have, you can connect them freely.
Wired
Connect instantly, just plug in.
Type C Aviator
Bluetooth
Wirelessly connect up to 3 devices
Support macOS / Windows
Wireless 2.4
Connect via 2.4 Ghz
Without any interruption
Ball Catch System
Easy to assemble for beginners, easy to remove the case within 1 second.
Structure
Experience the ultimate pressing feel from the Leaf Spring Mount structure that supports all your typing. No matter how hard you press, it is comfortable to press without fatigue. It also has a friendly function for beginners because there are no screws.
Both are different in the bottom row of keys, CTRL, WIN and ALT. The most popular layout in Thailand is WK.
What are the differences between PCBs?
All PCBs: All 3 modes are available.
Supports both 6.25u and 7u length spacebars.
There are 3 types to choose from.
1.2mm Tri-mode (Flex-cut/with RGB light)
1.2mm Tri-mode (Flex-cut/no RGB light)
1.6mm Tri-mode (Non Flex-cut/no RGB light)
difference
The thickness of the PCB affects the sound and printing feel. A 1.2mm PCB gives more Flex and a deeper sound (Thock) than a 1.6mm PCB, which is thicker and more rigid, which gives a more Clack tone.
How to choose a plate
The QK80 MK2 plate comes in a total of five material options.
Rank from hardest to softest
Carbon Fiber (Non Flex)
Aluminium (Non Flex)
FR4 (Flex-Cut)
POM (Non Flex)
PC (Non Flex)
The FR4 is the only plate option that features a Flex-Cut cutout, giving it a soft, bouncy feel and can be easily built into a THOCK tone.
Creammy Sound recommends choosing PC, POM + ALL FOAM.
Pull out the CAPSLOCK button and you will see a hidden switch inside. You can slide it up to ON to turn on wireless mode and down to enter wired mode (sliding the switch requires tweezers to slide it up because there are no switch legs sticking up).
Press and hold for 3 seconds.
FN + ~ | Enter Wired mode
FN + 1 | Connect Bluetooth device 1
FN + 2 | Connect Bluetooth device 2
FN + 3 | Connect 3rd Bluetooth device
FN + 4 | Connect mode 2.4G USB
FN + Win | Switch macOS/win mode
FN + Esc | Reset to factory settings
How to use the Screen Control screen
For pressing the LCD SCREEN
FN + Delete: Toggle the display screen on/off.
FN + Enter: Select to enter that mode.
FN + Backspace: Cancel button
FN + →: Next
FN + ←: Previous
For DOT MATRIX screen
You can press the button immediately without having to press the shortcut function. There are 5 modes to choose from. The color cannot be changed.
How to customize buttons and additional functions
QK80 MK2 supports VIA SOFTWARE and can be used immediately without downloading JSON.FILE.
You can access it immediately through this link and just press FN + ~ to enter wired mode.
MENU displayed for selection on the LCD screen
- Open the main menu - Go to the next menu level. - Confirm your selection
From left to right, you will see a total of 4 options:
THEME
Available in Default, Meow, Code.
2. APP application
- There is a "Flappy Bird" mini-game that comes with the device to play by controlling the bird's flight by pressing only the Spacebar button, which will show a score show.
- Custom Animation The screen of this model can be filled with images and GIF files, which can be customized and selected by yourself through settings in VIA.
3. Help HELP
It will be displayed as a QR CODE that connects to the QUICK GUIDE from the factory.
4. Set the Setting
Set time
Turn off RGB lights
How to change RGB MODE lights
FN +Tab | Toggle lighting mode, both DOT MATRIX and RGB lights on the letters.
FN + Q | Next Lighting Effect
FN + A | Previous Lighting Effect
FN + W | Lighting Brightness +
FN + S | Lighting Brightness -
FN + E | Lighting Hue +Hue range: 0° to 360°, in order of red, yellow, green, cyan, blue, and purple.
